E Series

Plate Heat Exchanger

Range

› Airflow over 20'000 m³/h.
› High efficiency, up to 80%
› Low pressure drops; suggested ΔP 200 Pa.
› Max differential pressure up to 2000 Pa.
› Max working temperature up to 90°C (no silicone).

Download pdf

EXSTREAM is the cross-counterflow technology
by Recuperator.

The long counterflow path, the hexagonal shape and the fin geometry ensure high efficiency and low pressure drop, meeting the market constant demand for more efficient solutions.
Even in the most extreme applications.

Great efﬁciency in compact space
One piece for high ﬂowrates
Fast delivery time

Material characteristics

Aluminium (AL)

Aluminium is used in most of the applications. This is thanks to its characteristics regarding corrosion resistance, ease of processing, non-flammability and reliability over the time.

Aluminium with epoxy protection (AC)

In enviroments with aggressive atmosphere, usually is recommended that aluminium is protected by a paint coating non-toxic based epoxy corrosion resistant (AC version - GOLD).

B·Blue (AB)

To reduce the consumption of electricity for cooling, it's possible to integrate a plate heat exchanger in an indirect evaporative cooling system. Recuperator has developed a new hydrophilic aluminium coating that improves system efficiency and ensures high corrosion resistance.

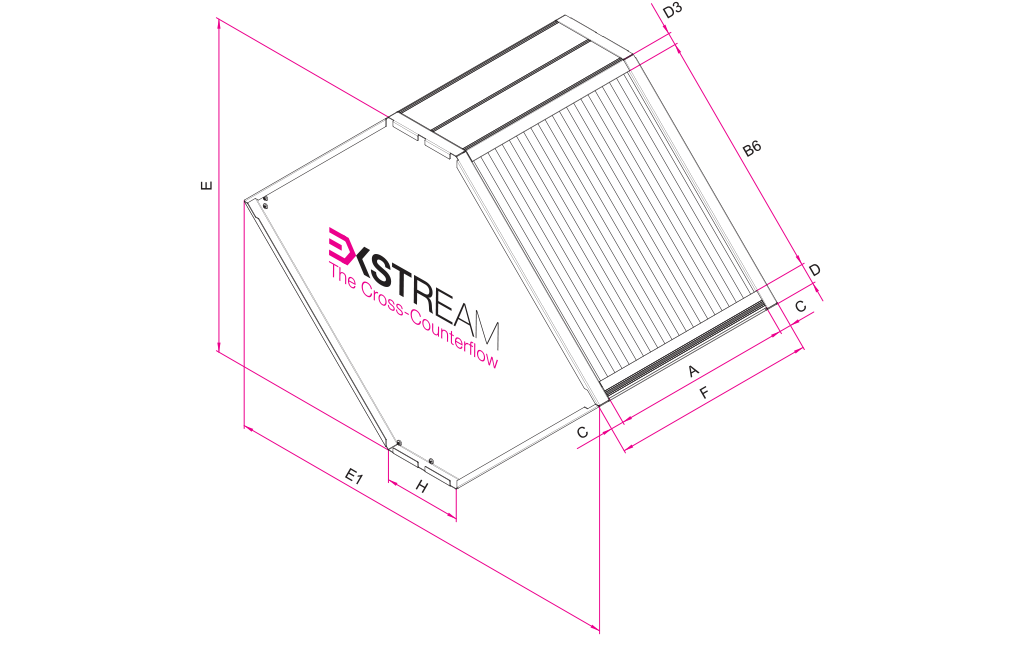

Dimensions

Model	B6	E	E1	H	F max
E0807	603	948	1139	193	900 to 1500
E0806	507	813	1139	327	900 to 1500
E0908	703	1090	1280	193	900 to 1500
E0907	607	955	1280	327	900 to 1500
E1009	803	1231	1422	193	900 to 1500
E1008	707	1096	1422	327	900 to 1500
E1211	1003	1514	1704	193	900 to 1500
E1210	907	1379	1704	327	900 to 1500

Measurements in mm.
Maximum lengths can be divided into several modules according to steps and weights.

Options
Default

Available

Unvailable

Default

Available

Unvailable

		F Series	A/B Series	E Series	ERP Series

		F Series	A/B Series	E Series	ERP Series
GENERAL	XS High differential pressure resistance During production, the plates can be subjected to a special treatment in order to become resistant to pressure differences up to 2500 Pa.
FRAME	TV Painted frame The traditional frame can be protected with an epoxy paint against any aggressive substances. This option is usually associated with "AC option" painted fins.
SIDE PLATE	AR Side plate with fold and turned Galvanized steel side plate, with smooth top and easy installation (slide-in) combined with CD option.
	AF Side plate with 20 mm fold Side panels in galvanized steel, with double lateral fold, designed for duct installation and reduced width. Not available with CD option.
	AE Side plate with fold Side panels in galvanized steel, with double side fold, designed for duct installation. Available on all B and F series models, they can have a thickness ranging from 20 mm to 40 mm.
	AZ Hips reduced by 1 mm Aluminum side plates, made with reduced thickness, with smooth top and easy installation (slide-in), combined with CD option. This solution (prerogative of some models of the B series) allows to have a greater finned surface, which can be important in small spaces. These devices are also very light and easy to handle.
PROFILES	CD Special profile (combined with AZ and AR) It is possible to combine special head covers so that they can be quickly installed in the air handling units (slide-in).
SEALING	NS Silicon free Recuperator devices are produced without the use of silicone. However, in some applications (for example, for high temperatures), in order to guarantee the sealing between air flows, it is necessary to use this sealant.
	SC Additional sealing Option that guarantees a greater seal between the two air flows. This option is recommended in particular applications such as hospitals, clean rooms, spray booths etc.
	SM Mechanical sealing Standard option produced during the stamping phase only for the F series.
BY-PASS PDF	BS Side bypass without damper Option that provides a side by-pass section without damper.
	BZ Bypass centrale senza serranda Option that provides a central by-pass section without damper.
BYPASS AND DAMPER PDF	BP Lateral bypass with external control damper Option that includes a lateral by-pass section equipped with a damper with external control.
	VP Lateral bypass with painted damper external control Option that includes a side by-pass section equipped with a painted damper with external control.
	BD Lateral bypass with internal control damper Option that provides a side by-pass section equipped with damper with internal control.
	BC Central bypass with external control damper Option that includes a central by-pass section equipped with a damper with external control.
	BE Central bypass with internal control damper Option that includes a central by-pass section equipped with a damper with internal control.
	FD Lateral bypass with damper without plastic parts and internal control Option that includes a side by-pass section equipped with a damper without plastic parts and with internal control.
